HOVER

HOVER takes smartphone photos and creates a fully measured, customizable 3D model. The measurements and 3D model can then be imported into Leap to build an accurate estimate. The model and report can be viewed within Leap, emailed, and sent to one of the integrated CRMs.

Quick Steps

  1. Setup HOVER.
    1. Authenticate HOVER.
    2. Add HOVER Placeholders in the price guide to pull in measurements.
    3. Setup Report Sending settings to designate where the reports should show up in the app and where they should be sent.

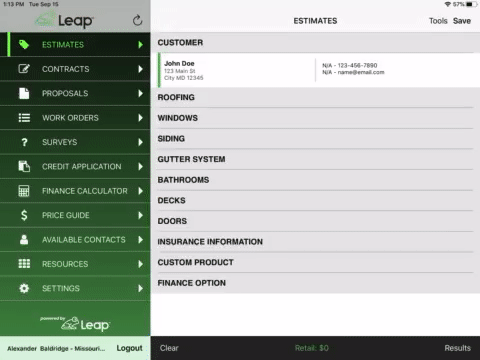

  2. Access HOVER Reports.
    1. In the estimate section of the app select the category of items you wish to obtain measurements for.
    2. Select HOVER.
    3. The address will automatically be entered from the customer selected. Hit the Return key to search for the report.
    4. Select the report.

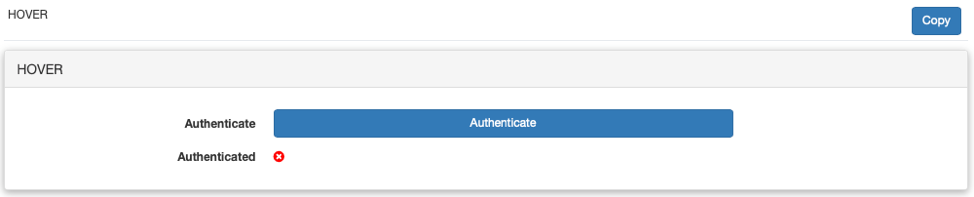

Authenticate HOVER

Connecting your Leap account to HOVER is as simple as clicking the Authenticate button. This will redirect you to the HOVER website where you can type in your credentials. Once successful you should see that HOVER has been authenticated. Responsive image

HOVER Placeholders

To link a HOVER report to Leap, you simply add placeholders to the Formula of any Measure Sheet Items that you would like to have populated. You can combine these placeholders with math formulas to increase or decrease the returned values. For Example: If you want to add 10% waste to the HOVER Roof Area you would use [HoverRoofArea]*1.1. Below is a list of placeholders you can use in the Formula fields:

Standard Roof Placeholders

[HoverRoofArea] [HoverRoofAreaUp] [HoverRoofAreaDown] [HoverRoofAreaRound] [HoverRoofEave] [HoverRoofValley]
[HoverRoofRake] [HoverRoofRidge] [HoverRoofHip] [HoverRoofStepFlashing] [HoverRoofFlashing]


Roof Pitch Placeholders

[HoverRoof0/12Area] [HoverRoof1/12Area] [HoverRoof2/12Area] [HoverRoof3/12Area] [HoverRoof4/12Area] [HoverRoof5/12Area] [HoverRoof6/12Area] [HoverRoof7/12Area] [HoverRoof8/12Area] [HoverRoof9/12Area] [HoverRoof10/12Area]
[HoverRoof11/12Area] [HoverRoof12/12Area] [HoverRoof13/12Area] [HoverRoof14/12Area] [HoverRoof15/12Area] [HoverRoof16/12Area] [HoverRoof17/12Area] [HoverRoof18/12Area] [HoverRoof19/12Area] [HoverRoof20/12Area]


Standard Siding Placeholders

[HoverSidingArea] [HoverSidingAreaUp] [HoverSidingAreaDown] [HoverSidingAreaRound] [HoverSidingOpeningsQty] [HoverSidingOpeningsArea]
[HoverSidingOpeningsTopLength] [HoverSidingOpeningsBottomLength] [HoverSidingOpeningsSidesLength] [HoverSidingPerimeterLength] [HoverSidingAreaWithOpenings]


Siding Brick Placeholders

[HoverBrickOpeningsQty] [HoverBrickOpeningsTopLength] [HoverBrickOpeningsBottomLength] [HoverBrickOpeningsSidesLength] [HoverBrickPerimeterLength]
[HoverBrickInsideCornerQty] [HoverBrickInsideCornerLength] [HoverBrickOutsideCornerQty] [HoverBrickOutsideCornerLength]


Other Siding Placeholders

[HoverSidingEavesFasciaLength] [HoverSidingFriezeBoardLength] [HoverSidingRakeLength] [HoverSidingSlopedFriezeBoardLength] [HoverSidingEaveSoffitArea] [HoverSidingFriezeBoardSoffitArea] [HoverSidingRakeSoffitArea] [HoverSidingSlopedSoffitArea]
[HoverSidingInsideCornerQty] [HoverSidingInsideCornerLength] [HoverSidingOutsideCornerQty] [HoverSidingOutsideCornerLength] [HoverSidingShuttersQty] [HoverSidingShuttersArea] [HoverSidingVentsQty] [HoverSidingVentsArea]


Entering a Formula Placeholder

Show Placeholder Formulas

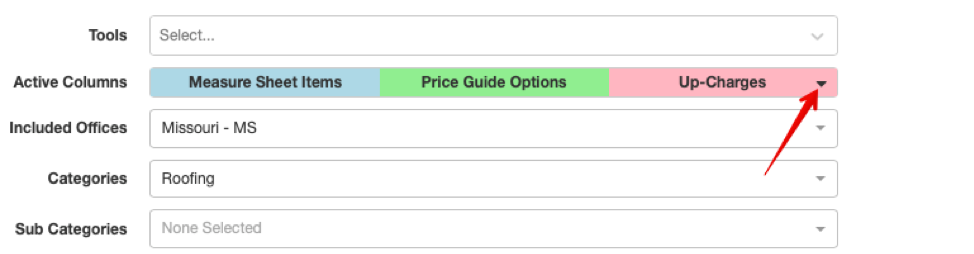

  1. Enter the Price Guide and click on the Active Columns menu.
  2. Check off Formula under Measure Sheet Items.
  3. Close the Active Columns menu.
Responsive image

Enter Formula

  1. Enter the formula into the Formula column of the Measure Sheet Item.
  2. Save the Measure Sheet Item.
Responsive image

Setup Report Sending Settings

See Report Sending.

Access HOVER Reports

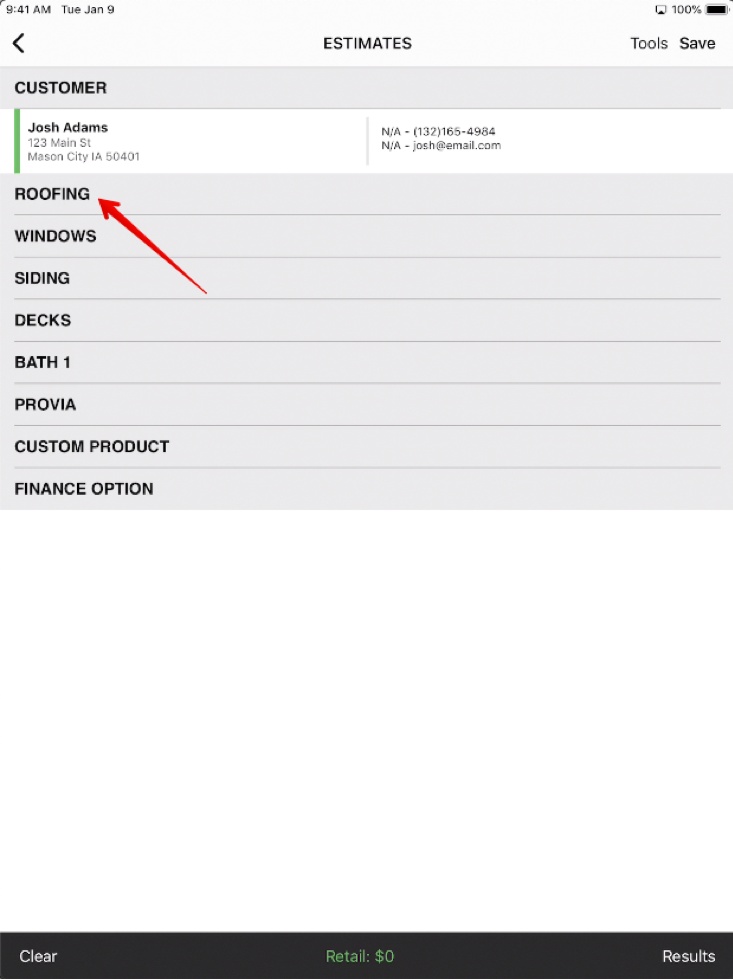

    1. In the estimate section of the app select the category of items you wish to obtain measurements for.
    2. Select HOVER.
    3. The address will automatically be entered from the customer selected. Hit the Return key to search for the report.
    1. Select the report.
  1. Once you have the report populated in estimates, navigate to Resources.
  2. Click HOVER Report to access the full report.
  3. Responsive image
